REAR LIFT

Rear Lift compactor systems used for all types of waste from recycling to industrial materials. The compactors are designed with a rear loading facility and can be fitted with an electric or pneumatic piston ram.

Rear Lift compactor systems are available in different sizes, ranging from standard to heavy duty capacity. The compactors have been designed to have a minimum clearance between the sides of the container and the load surface, giving increased safety when loading and unloading waste materials. Our unique design enables material to push in a forward motion as well as pull it back into the body of the truck, thereby reducing the amount of space required for storage. This results in reduced cost and space requirements whilst still providing the same level of output as other conventional compactors.

Please contact our office for all enquiries on Rear Lift systems.

CONTACT US
HEAVY DUTY

Rear Loader Compactor Systems for Efficient Waste Collection

Wastecorp Equipment supplies rear lift waste trucks and rear loader compactor systems designed for reliable, high-volume waste collection operations. Built for demanding Australian environments, our rear lift compactors deliver efficient waste compression, increased payload capacity, and dependable performance for municipal, commercial, and industrial waste management fleets.

Rear lift garbage trucks remain one of the most widely used waste collection vehicles globally due to their versatility, simple loading design, and high compaction efficiency. Operators can quickly load waste through the rear hopper while the hydraulic compaction system compresses material into the truck body, maximising waste transport capacity and improving route efficiency.

If you are searching for rear lift waste trucks for sale in Australia, Wastecorp Equipment offers reliable rear loader systems engineered for productivity, durability, and long service life.

What Is a Rear Lift Waste Truck

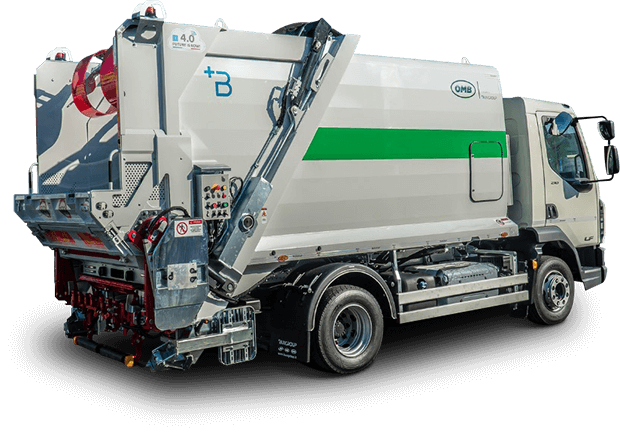

A rear lift waste truck (also called a rear loader garbage truck) is a waste collection vehicle fitted with a rear loading hopper and hydraulic compaction mechanism.

Waste is loaded into the rear hopper and compressed by a hydraulic packer or compactor blade which pushes the material into the main body of the truck. This compaction process significantly increases payload capacity, allowing waste collection operators to transport larger volumes of waste with fewer trips.

Rear lift compactors are commonly used for:

  • Municipal waste collection
  • Commercial waste services
  • Recycling collection
  • Construction and demolition waste
  • Industrial waste transport
  • Organic and green waste operations

Because of their efficiency and reliability, rear loader trucks are one of the most widely used waste collection systems by councils and private waste management companies.

Rear Lift vs Front Loader vs Side Loader Waste Trucks

Different waste collection systems are used depending on the operational requirements of a waste fleet.

Feature Rear Lift Trucks Front Loader Trucks Side Loader Trucks
Loading Position Rear hopper loading Front hydraulic lifting Automated side loading
Best For Municipal & mixed waste Commercial dumpsters Residential wheelie bins
Operator Involvement Manual loading Hydraulic bin lifting Fully automated
Waste Types Mixed waste streams Commercial waste Residential waste
Flexibility Very high Moderate Route specific

Rear lift trucks are considered the most versatile waste collection system, making them widely used across municipal and commercial waste operations.

Rear Lift Compactor System Features

Wastecorp rear lift compactor systems are engineered for high productivity, safety, and durability.

Key features include:

  • Heavy duty reinforced steel compactor body

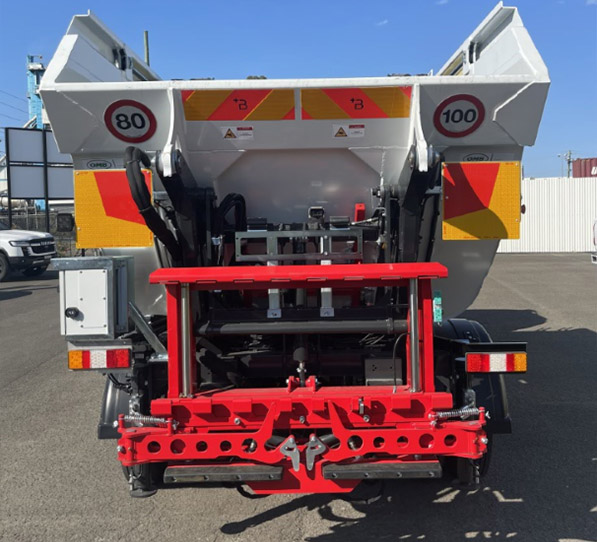

  • Rear loading hopper for fast waste collection
  • Hydraulic compaction mechanism for high compression efficiency
  • Minimal clearance hopper design for operator safety
  • Multiple truck chassis compatibility
  • High strength steel construction

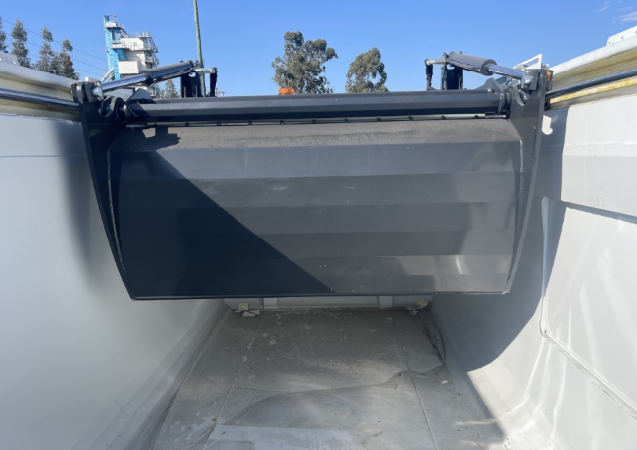

  • Reliable compactor shovel and packer blade system
  • Designed for continuous daily waste collection

These systems allow operators to collect waste efficiently while maintaining safe working conditions during collection routes.

Benefits of Rear Lift Waste Trucks

1

High Waste Payload Capacity

Rear lift compactors compress waste efficiently, allowing operators to transport larger volumes of waste per load.
2

Improved Waste Collection Efficiency

Rear loading allows operators to empty bins quickly and maintain efficient collection routes.
3

Lower Operational Costs

Compaction increases payload capacity, reducing landfill trips, fuel consumption, and operating costs.
4

Proven Waste Collection Technology

Rear loader compactors use reliable hydraulic systems designed for continuous waste collection operations.
5

Flexible Waste Handling

Rear lift trucks can collect municipal waste, recyclables, construction debris, and industrial waste materials.

Industries That Use Rear Lift Waste Trucks

Rear lift compactors are widely used across multiple sectors including:

  • Municipal councils and local government waste services
  • Commercial waste collection companies
  • Recycling contractors
  • Construction and demolition waste operators
  • Industrial waste management companies
  • Facility management organisations

Their flexibility and efficiency make rear lift compactors an essential part of many waste collection fleets.

Rear Lift Compactor Technical Specifications

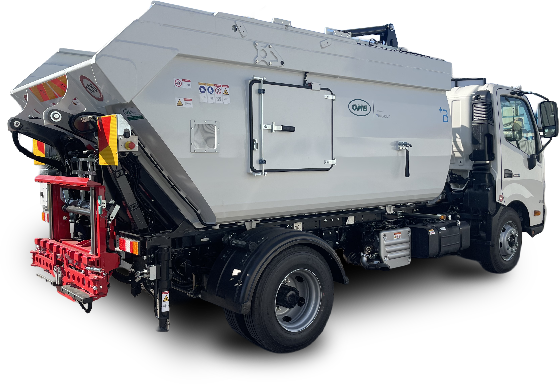

Below are the key specifications for the T-Rex 7m³ rear lift compactor system.

Specification Value
Equipment Model T-Rex Rear Lift
Body Volume 7 m³
Equipment Mass 1,850 kg
Total Length 4,090 mm
Tub Length 3,615 mm
Delivery Hatch Length 815 mm
Total Height 2,325 mm
Tub Height 1,485 mm
Delivery Hatch Height 635 mm
Total Width 1,970 mm
Tub Width 1,870 mm

Materials & Construction

Component Material Thickness
Tank Side Panels S355JR Steel 3 mm
Tank Bottom Sheets S355JR Steel 3 mm
Compactor Shovel S355JR Steel 2–3–15 mm
Cart Guides S355JR Steel 6 mm
Comb Sheets S355JR Steel 3–4–15 mm
Comb Arms Domex 700 Steel 15 mm
Pins 42NiCrMo4 Steel Various

These materials provide high structural strength and durability for demanding waste collection environments.

FAQs

What is a rear lift garbage truck?

A rear lift garbage truck is a waste collection vehicle with a rear loading hopper and hydraulic compaction system used to compress and transport waste efficiently.

What types of waste can rear lift compactors handle?

Rear lift compactors can handle municipal waste, recycling materials, construction debris, commercial waste, and industrial waste.

Are rear loader trucks used by councils?

Yes. Rear lift trucks are commonly used by local councils and municipal waste contractors because they are reliable and efficient for daily waste collection.

How does a rear lift compactor system work?

Waste is loaded through the rear hopper and compacted using a hydraulic packer blade or piston ram that pushes the material into the truck body.

Can rear lift compactors be installed on different truck chassis?

Yes. Rear lift compactor bodies can be mounted on a variety of truck chassis depending on the required capacity and fleet specifications.

What are the benefits of rear lift waste trucks?

Rear lift trucks provide high payload capacity, reliable waste compaction, flexible waste handling, and efficient waste collection routes.

Do rear lift trucks reduce waste transport costs?

Yes. By compressing waste inside the truck body, rear lift compactors allow operators to transport more waste per trip and reduce operational costs.
