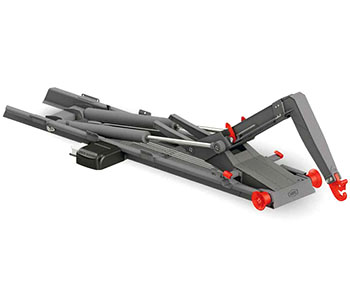

30 Tonne
KT FBS Model
- Telescopic and articulated arm.
- Better load angle and lower height during the roll on step.
- High tipping angle.
- Deep under floor loading.
- Wider container lengths range.
- Suitable for handling debris materials and sludge.
Models: KT FBS 030-6, KT FBS 030-7
Scroll down for the specification for each model. Give us a call or use our contact form for enquiries.
KT 030-6
Characteristics

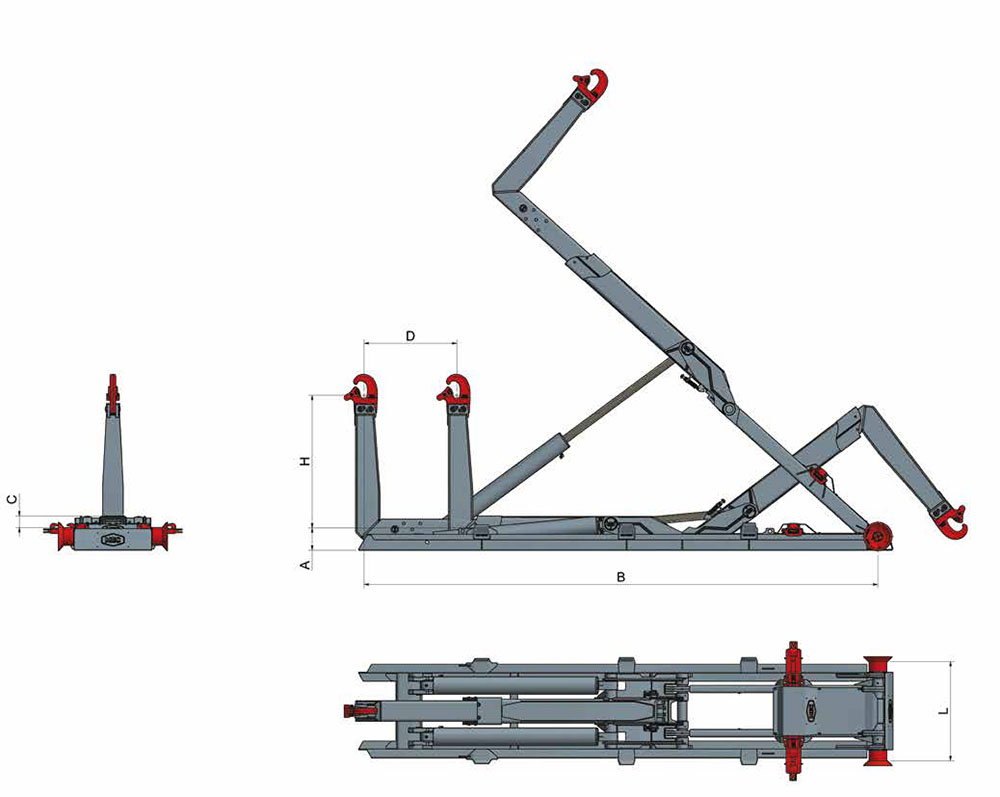

| Recommended container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | m | m | |
| KT 30 | 32 | 30 | 240 | da 5 a 6,7 | 155 | da 820 a 1560 | 1430 – 1570 | 1070 | 4,4 | 7,4 |
KT 030-7
Characteristics
| Recommended container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | m | m | |
| KT 30 | 32 | 30 | 240 | da 5 a 6,7 | 155 | da 820 a 1560 | 1430 – 1570 | 1070 | 4,4 | 7,4 |
KT FBS 030-6
Characteristics
| Recommended container | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | E | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | mm | m | m | |
| KT FBS 030 | 32 | 30 | 240 | da 5,4 a 6,7 | 155 | da 825 a 1125 | 1090 – 1180 | 1430 – 1570 | 1070 | 3,6 | 7 |
KT FBS 030-7
Characteristics
| Recommended container | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | E | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | mm | m | m | |
| KT FBS 030 | 32 | 30 | 240 | da 5,4 a 6,7 | 155 | da 825 a 1125 | 1090 – 1180 | 1430 – 1570 | 1070 | 3,6 | 7 |

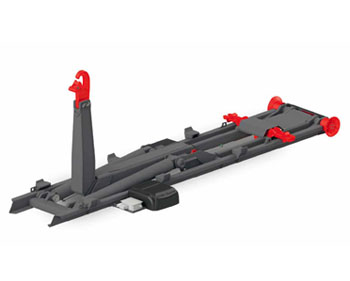

SC 306
Characteristics
| Recommended container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | m | m | |
| SC 306 | 32 | 30 | 240 | da 4,5 a 5,6 | 145 | da 1000 a 1100 | 1430 – 1570 | 1070 | 3,6 | 6,4 |
SC 307
Characteristics
| Recommended container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | m | m | |
| SC 307 | 32 | 30 | 240 | da 5,7 a 6,5 | 145 | 1300 | 1430 – 1570 | 1070 | 4,6 | 7,2 |

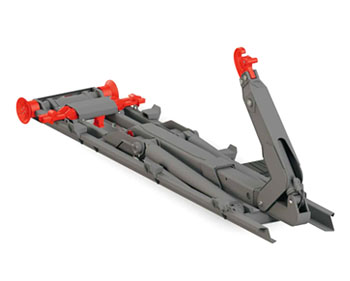

SCK 306
Characteristics
| Recommended container | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | E | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | mm | m | m | |
| SCK 206 | 32 | 30 | 240 | da 4,8 a 5,8 | 145 | da 800 a 1230 | 1090 – 1180 | 1430 – 1570 | 1070 | 3 | 6,6 |
SCK 307
Characteristics
| Recommended container | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Minimum GVW recommended | Maximum loading capacity | A | B | C | D | E | H | L | MIN | MAX |
| ton | ton | mm | m | mm | mm | mm | mm | mm | m | m | |
| SCK 207 | 32 | 30 | 240 | da 5,9 a 6,5 | 145 | 1230 | 1090 – 1180 | 1430 – 1570 | 1070 | 3,8 | 7,4 |
